Aviators Handbook Of Knowledge By Rajat Madaan

₹54.00 ₹60.00 ₹200.00 73% Off
5924 Views

Buy Ebook Rental Ebook
Select your rental days
Add to Wish List

3 Offers Available

Get Rs.50 Instant Cashback on the purchase of Rs.400 or aboveSAVE10, Already Applied
More Offers
Less Offers

Product Specifications

Publisher Vayu Education
ISBN 9789383758456
Author: Rajat Madaan
Available
Available in all digital devices
Gate
  • About the book

About this eBook

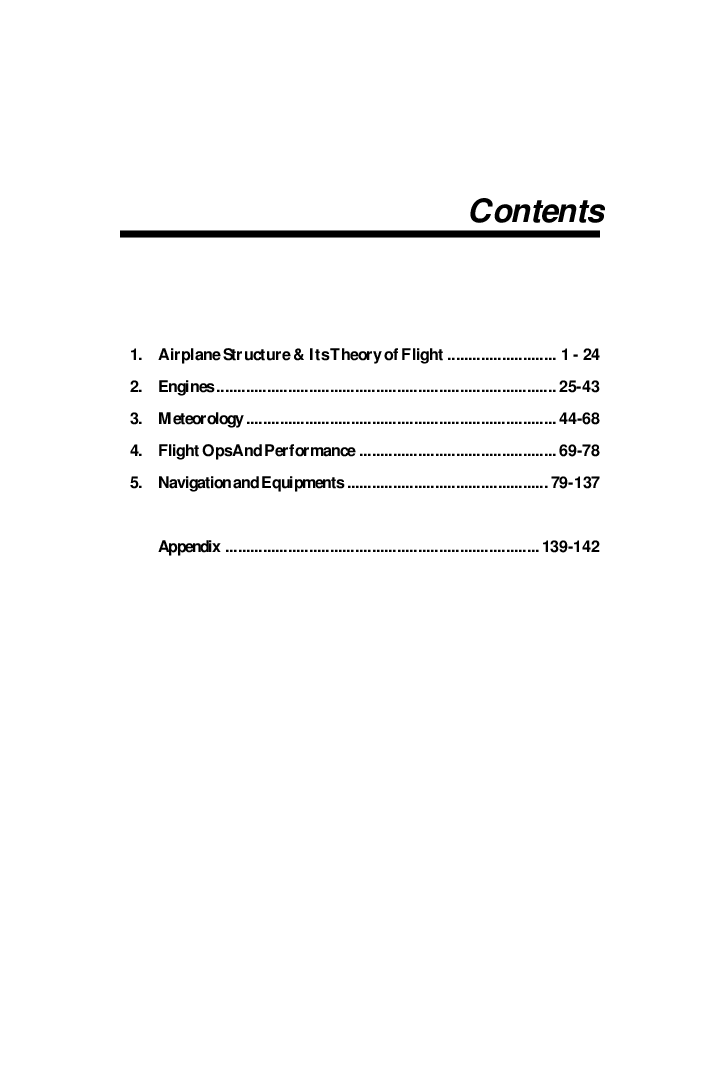

Contents
1. Airplane Structure Its Theory of Flight .......................... 1 - 24 2. Engines ................................................................................. 25-43 3. Meteorology .......................................................................... 44-68 4. Flight Ops And Performance ............................................... 69-78 5. Navigation and Equipments ................................................ 79-137
Appendix ........................................................................... 139-142

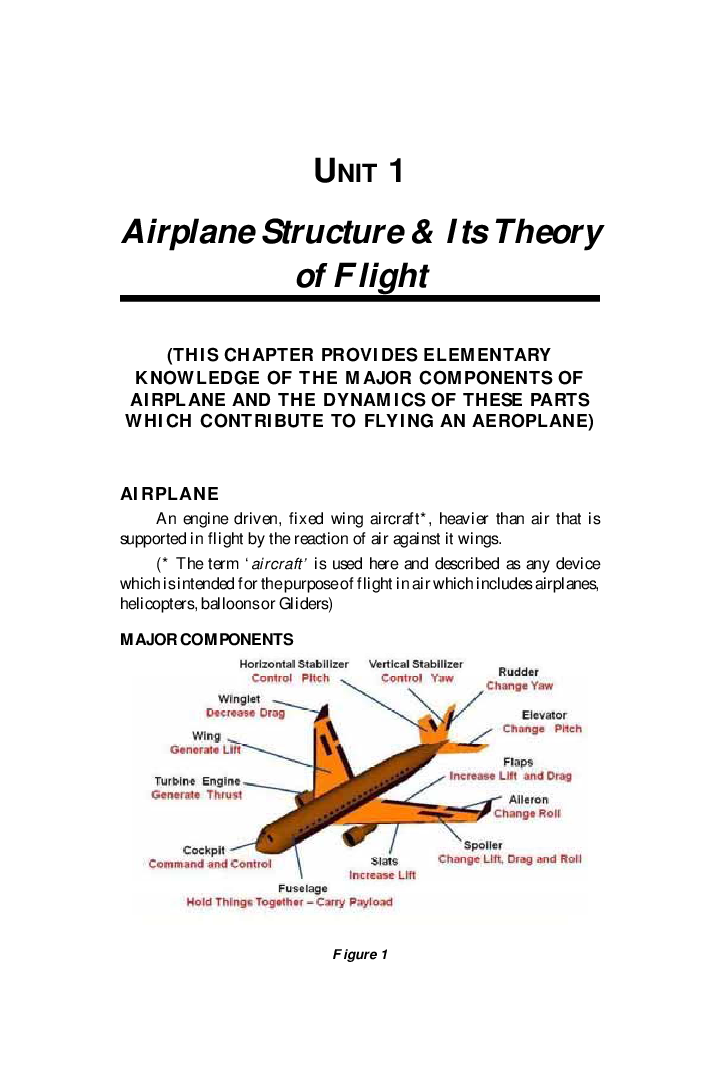

UNIT 1
Airplane Structure Its Theory of Flight THIS CHAPTER PROVIDES ELEMENTARY KNOWLEDGE OF THE MAJOR COMPONENTS OF AIRPLANE AND THE DYNAMICS OF THESE PARTS WHICH CONTRIBUTE TO FLYING AN AEROPLANE
AIRPLANE An engine driven, fixed wing aircraft , heavier than air that is supported in flight by the reaction of air against it wings. The term aircraft is used here and described as any device which is intended for the purpose of flight in air which includes airplanes, helicopters, balloons or Gliders MAJORCOMPONENTS
Figure 1
2
Aviator's Handbook of Knowledge

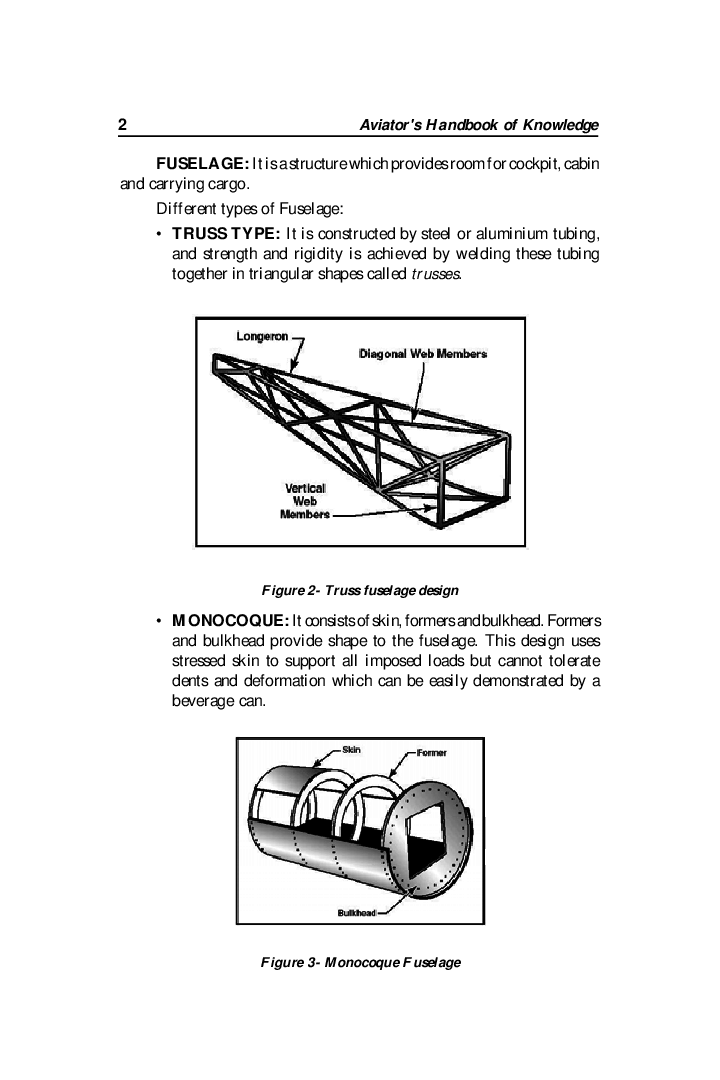

FUSELAGE It is a structure which provides room for cockpit, cabin and carrying cargo. Different types of Fuselage TRUSS TYPE It is constructed by steel or aluminium tubing, and strength and rigidity is achieved by welding these tubing together in triangular shapes called trusses.
Figure 2- Truss fuselage design
MONOCOQUE It consists of skin, formers and bulkhead. Formers and bulkhead provide shape to the fuselage. This design uses stressed skin to support all imposed loads but cannot tolerate dents and deformation which can be easily demonstrated by a beverage can.
Figure 3- Monocoque Fuselage
Airplane Structure Its Theory of Flight
